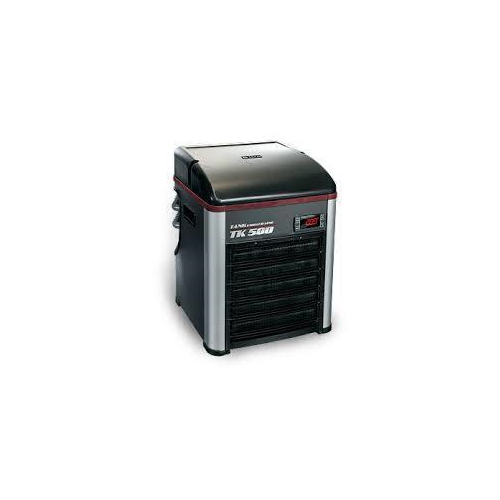

Chiller only - please note these newer models no longer have a heater in them



MADE AND DESIGNED IN ITALY

Efficient Cooling Technology

• The exclusive use of high-quality compressors and of the titanium coaxial heat exchanger, ensures high performance and low energy consumption. The set of technologies used allows you to decrease noise levels and achieve the highest COP (Coefficient Of Performance) contributing to significant energy savings.

Digital Thermostat

• Intuitive setting of functions and accurate temperature detection, resolution 0.1°C. The setting range is 0°-35°C and there is a closed loop temperature control system with high accuracy and extremely tight differential (0.5°C). Displayed temperature is in °C or °F and there are security alarms.

Efficient Design

• The chiller, with its innovative design, is characterized by a solid structure designed to guarantee a perfect protection against rust. The functionality of the shape and the compact size are also suitable for confined spaces.

Unique Feature

• The innovative TECOair SYSTEM makes it possible to rotate the conveyor, thus ensuring optimal air exchange for the chiller and heat output from the cabinet. Quick and easy magnetic air filter maintenance. Moreover, the innovative “pinch off plier” allows easy removal of the chiller for maintenance.


Technical Details
Supply - 230V-50Hz (others supplies available on quantity)
Cooling Power Consumption - 225 w
Ecological Refrigerant - R134a
Min. Flow rate - 400 lt / h
Tank Size - up to 500 lt
(water temp. 25°C - Room temp. 30°C - Heating load 0,5 w / lt)
Dimensions - mm. 310 x 310 x 416 (h)
Dimensions - in. 12.2 x 12.2 x 16.38 (h)
Weight - 16,5 kg
Connections - fitting 3/4" - 16mm int. tube diameter

Instruction Manual



http://www.tecoonline.eu/files/ENGLISH-Instruction...

(865)

SKU 865
Barcode # 8028377005673
Brand Teco
Shipping Weight 18.0000kg
Shipping Width 0.410m
Shipping Height 0.630m
Shipping Length 0.410m
