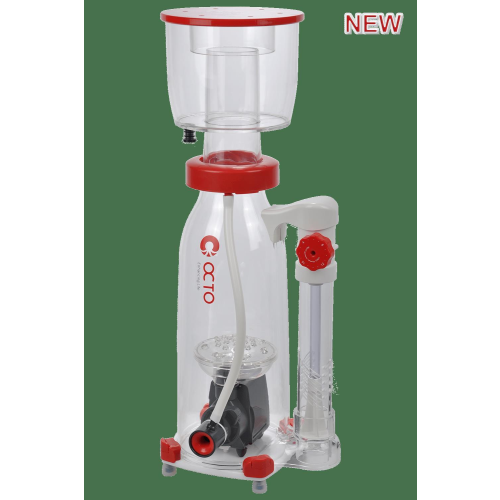

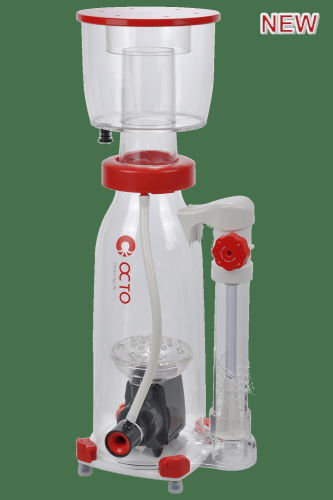

Octo eSsence 130 Space Saving Protein Skimmer
Latest eSsence 130 Protein Skimmer(1)
“Loaded with Innovations"
Did you know?
We are the first protein skimmer manufacturer in the world that designs and produces our own skimmer pumps. Our skimmer pumps have been specifically engineered to enhance and increase the efficiency of our protein skimmers.
Product Name: OCTO eSsence 130 Protein Skimmer
Model/Type: Space Saving Skimmers (SSS)
Series: OCTO
Features & Benefits
- Twist & Lift Collection Cup for Easy Maintenance
- Quieter Operation with Integrated Detachable Silencer Collar
- Dome Bubble Chamber with Angled Apertures for Extended Reaction Time
- Quick Release Tabs Offer Convenient Access to the Inner Body
- 360° Submerged Water Output Provides a Quiet Splash-Free Discharge
- Calibrated Click Dial Water Output Adjustment
- Elgant Full Tapered Wine-Shaped Body
- Remarkably Compact Footprint
- Quiet , Reliable and Efficient AQ Pinwheel Pump
2 Years Warranty *
Overview
Loaded with Innovations
10 over years of cumulative experience in the design and manufacturing of Skimmers, our eSsence-130 are loaded with innovative human centric features.
12% quieter than Skimmer of the same capacity due to its Integrated Silencer build into the Skimmer’s Neck. Couple with a Twist and Lift design, this enable the User to quickly detach the Neck from the Skimmer’s Body for easy and quick maintenance.
16 Steps Water Outlet Adjustments to ensure that fine tuning of water output adjustments are possible. Design with special slanting cut grooves to ensure an even outflow which minimises splashes.
25 Angled Grooves + Apertures on the Bubble Plate for maximising constant micro air bubbling, with a Vortex churn effect which extends reaction time.
4 Quick Releases at the Base Plate of the Skimmer allow User to quickly and conveniently access the inner body of the Skimmer, no Screwdriver needed.
4 Ultra Durable Silicon Rubber Base Attachments (Feet) are attached to the Base Plate, effectively reduces vibration and noise.
Warranty (against manufacturing defect):
2 years* – pump motor only
1 year – all other parts
Technical Data
1. Skimmers
| Product | Wet/Dry | Pump Power | Cup Diameter | Neck Diameter | Footprint | Height | Output Size | Tank Volume | ||||||||
| W | W | mm | inch | mm | inch | mm | inch | mm | inch | L | US Gal | |||||
| 50 Hz | 60 Hz | |||||||||||||||
| S-130 | Wet | 10 | 11 | 140 | 5.5 | 60 | 2.4 | 210 | 175 | 8.2 | 6.8 | 520 | 20.5 | ?40 mm (1-1/4″) | 600 | 158 |
2. Skimmer Pump
| Product | Model No. | Wet/Dry | Air Intake | Power | Maximum Flow Rate | Connection Size (outlet) | |||||||
| 50Hz | 60Hz | 50Hz | 60Hz | 50Hz | 60Hz | ||||||||
| LPH | GPH | LPH | GPH | W | W | LPH | GPH | LPH | GPH | ||||
| S-130 | AQ-1800S | Both | 480 | 127 | 511 | 135 | 10 | 11 | 530 | 140 | 530 | 140 | ?25 (3/4″) |
What is Included
| OCTO S-130 | |||
| Article Code | Items | Model No. | Qty |
| A | Cover | – | 1 |
| B | Collection Cup | – | 1 |
| C | Neck | – | 1 |
| D | Skimmer Body | – | 1 |
| E | Bubble Plate | – | 1 |
| F | Bubble Plate Chamber | – | 1 |
| G | Adapter | – | 1 |
| H | O Ring | 22*2 | 1 |
| I | Air hose | – | 1 |
| J | Venturi | – | 1 |
| K | Fastener | – | 4 |
| L | Screw | M6*18 | 5 |
| M | Silicone feet | – | 4 |
| N | Pump holder | – | 1 |
| O | O Ring | 17*2 | 1 |
| P | Skimmer pump | AQ-1800S | 1 |
| Q | Wire Sleeve | – | 1 |
| R | Skimmer Base | – | 1 |
| S | Plug | – | 1 |
| T | Drain Outlet | – | 1 |
| U | Holder | – | 1 |
| V | Adjustable Valve | – | 1 |
| W | Water Outlet Pipe | – | 1 |
Explosion Chart
(1432)
| SKU | 1432 |
| Barcode # | 6950291252012 |
| Brand | Octo |
| Shipping Weight | 6.5000kg |
| Shipping Width | 0.240m |
| Shipping Height | 0.420m |
| Shipping Length | 0.510m |
| Shipping Cubic | 0.051408000m3 |
